SPECIFICATIONS

Brand Name: NONE

Choice: yes

External Testing Certification: ce

High-concerned chemical: None

Is it Powered: Non-powered

Item Height: 36

Item Length: 60

Item Type: Air-conditioning Installation

Item Weight: 26

Item Width: 60

Material: ABS

Model Name: 432-100

Origin: Mainland China

Year: NEW

semi_Choice: yes

This electric air conditioning system (Inside unit + outside unit) can be installed to anywhere you want. It runs by battery(Generator). Even you got your engine stalled, you still can use this air conditioner. Low noise, energy-saving, environmental protection is the best choice for you. It will help you save thousand dollars on gas every year.

The air-conditioning and heating systems are separate, and the heating system is independently connected to the original water tank in the car.

Pay attention:

1. PLEASE DON'T RUN the compressor without adding R134a gas (Freon) and connecting with other parts! We couldn't take responsibility for you if you damage the compressor.

2. Remember ! Please screw tightly of the controller board. Otherwise the board will get burnt.

Generator (battery) request:

12V compressor require generator ampere over 100a

24V compressor require generator ampere over 70A.

About vehicle battery. If you want to use the electric compressor after parking, then your vehicle battery capacity should be large enough. For example, 12V compressor current about 45A. So one new and full charged 45A battery can run the compressor for one hour.

Evaporator:

Cooling capacity: About 22220Btu/h

Evaporator coil: 32 passe 4way toda a bobina do alumínio

Evaporator blower motor power: 80-100W

Switch: Temperature and 3-speed blower switch

Compressor Data:

Compressor type: semi-hermetic horizontal scroll compressor

Material: aluminium alloy

VoltageDC-12V

Displacement20cc/r

OilRL68H(POE)) 120ml

Refrigerant (Gas)R134a

Operating voltage9.5V-15V

Variable frequency voltage4V-9V

Rated power:650W~800W

Refrigeration capacity>2200W

Speed range1000-2500rpm

Overcurrent protection80A

COP3.3

Max Noise<70dB(A)

Suction pipe inner size∅18.3mm

Discharge pipe inner size∅15.5mm

Led blinking：

Blinking 1 times, pause 1 second: Standby mode.

Fast blinking 2 times, pause 1 second: Excessive current, Over 50A.

Fast blinking 3 times, pause 1 second: Locked rotor protection.

Fast blinking 4 times, pause 1 second: Undervoltage protection.

Fast blinking 6 times, pause 1 second: Electric fan fault.

Fast blinking 7 times, pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.

Fast blinking 8 times, pause 1 second: Compressor over heated protection.

Fast blinking 9 times, pause 1 second: Pressure switch protection.

Brushless controller unit:

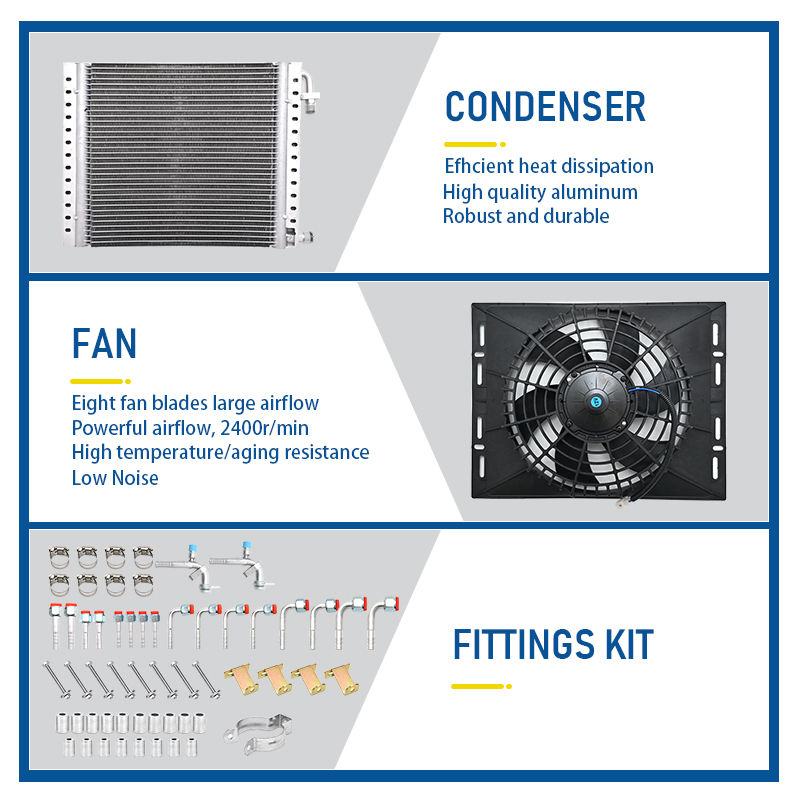

Condenser Outside unit:
