SPECIFICATIONS

Brand Name: Asia-Teco

Certification: CE

Connectivity: Bluetooth

Doorknob Function: Biometric, Key & Keypad, Biometric

Fit Door Thickness: 8-15mm

Handle Direction: Direction Reversible, Direction Reversible

Material: Aluminum Alloy, Zinc Alloy

Model Number: MP1000-TT

Power Supply: DRY BATTERY

Power supply: 4pcs AAA batteries

Shell material: ABS plus alloy

Smart home platform: Alexa, Google Assistant, TTLOCK App

Special Features: Support Gateway

Suitable Door Type: Glass Door

Suitable for Door Type: Single Open Glass Door

Unlock method: Code password Fingerprint Card keys Remote Control TTLOCK App

Ways To Unlock: App, Bluetooth, Mechanical Keys, Password, FINGERPRINT, Mechanical Keys

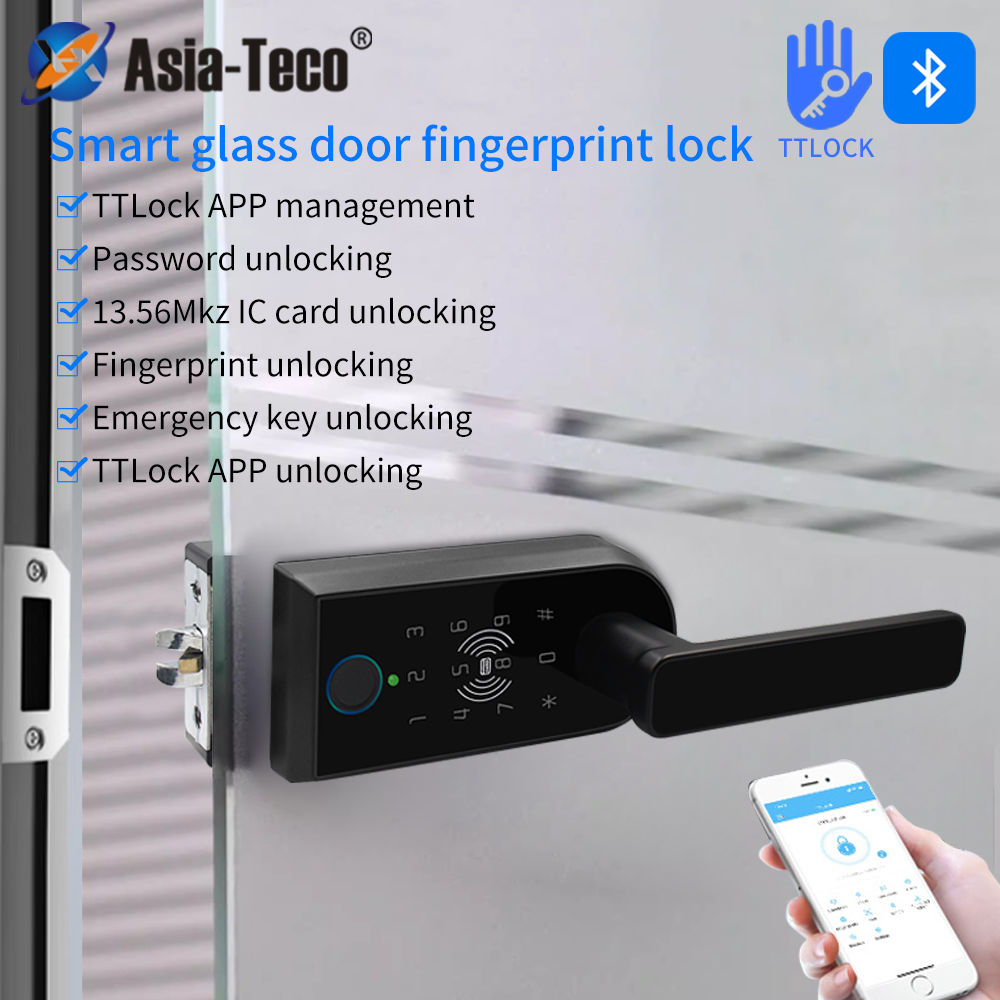

TTLOCK high Partition Lock

Functions and benefits:

Material of shell: ABS + Alloy （Stainless made lock latch）

Unlock method: IC Card/Code/Fingerprint/Remote controler /TTLOCK App/Emergency Key

1. Data capacity: 1 management card and 1 management fingerprint, with a maximum of 400 cards, passwords, or fingerprints (50 fingerprints, 100 passwords, and 10 remote controllers)

2. Card type description: M1 card (some bank cards with flash payment function can also be used)

3. Password Description: The password must be 6-12 digits.

4. Virtual password: Supports anti peeping function for virtual passwords (the real password must be within the first 15 digits, and there is no limit to the following digits, which can be unlimited. Press # to end)

5. Password lock: If the password is incorrect continuously for more than 5 times, lock it for 5 minutes. Automatically released after 5 minutes. During the lock period, if the password does not respond, the card or fingerprint can be unlocked by opening the door or powering off.

6. Power Supply: Battery instructions: Use 4pcs AA alkaline batteries.

7. Power supply outside the door: Supports USB emergency power supply outside the door, and emergency power supply opens the door.

8. Under power alarm: If the door lock voltage is lower than 4.8V, there will be a voice prompt alarm function. At this point, the door can still be opened 100 times.

9. Human computer interaction: Supports voice operation prompts in both Chinese and English, which is a voice based human-computer interaction method.

10. * Key # Key: The * key is the undo key, which returns to the function# The key is the confirmation key, and after entering the password, you need to press # to confirm.

11. Normally open function（Passage mode）:

1) Set normally open: After opening the door, do not press the handle down. Press the 123456 # button within 6 seconds to enter the normally open state. When normally open, the green light will flash every 6 seconds as a reminder.

2) Cancel normally open（Passage mode）: First open the keyboard, long press "1" on the keyboard to exit normally open mode. (This function is for indoor doors and office use, please use outdoor door locks with caution)

12. Working environment: -20 to 55oC, less than 93% RH
