SPECIFICATIONS

AI Functions: Human Detection

Alarm Action: Telefon Alarm, Email Photo, Local Alarm

Audio Output: None

Brand Name: Dahua

Certification: CE, FCC, UL

Color Night Vision: Yes

Connectivity: IP/Network Wired

Dimensions (L x W x D)(mm): 288.4 X 94.4 X 84.7mm

High Definition: 8.0 Megapixels

High-concerned chemical: None

IP Rating: IP67

Installation: Normal

Internal Storage: 256GB

Lens (mm): 3.6mm, 2.8mm

Lens Quantity: Single Lens

Megapixels: 8MP

Model Number: IPC-HFW3849T1-AS-PV-S5

Power Consumption(W): 9.7W

Power Supply: With Poe

Power Supply(V): DC12V, PoE (802.3af)

Scene: Indoor and outdoor

Sensor: CMOS

Shell Material: Metal

Smart home platform: NONE

Special Features: Waterproof / Weatherproof

Style: Bullet Camera

Supported Mobile Systems: Windows Mobile, iOS, Android, Symbian

Supported Operating Systems: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 2000, Windows 2008, Windows 2003

TF Card: None

Video Compression Format: H.264,H.265

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: NONE

Zoom type: None

Is customized: No

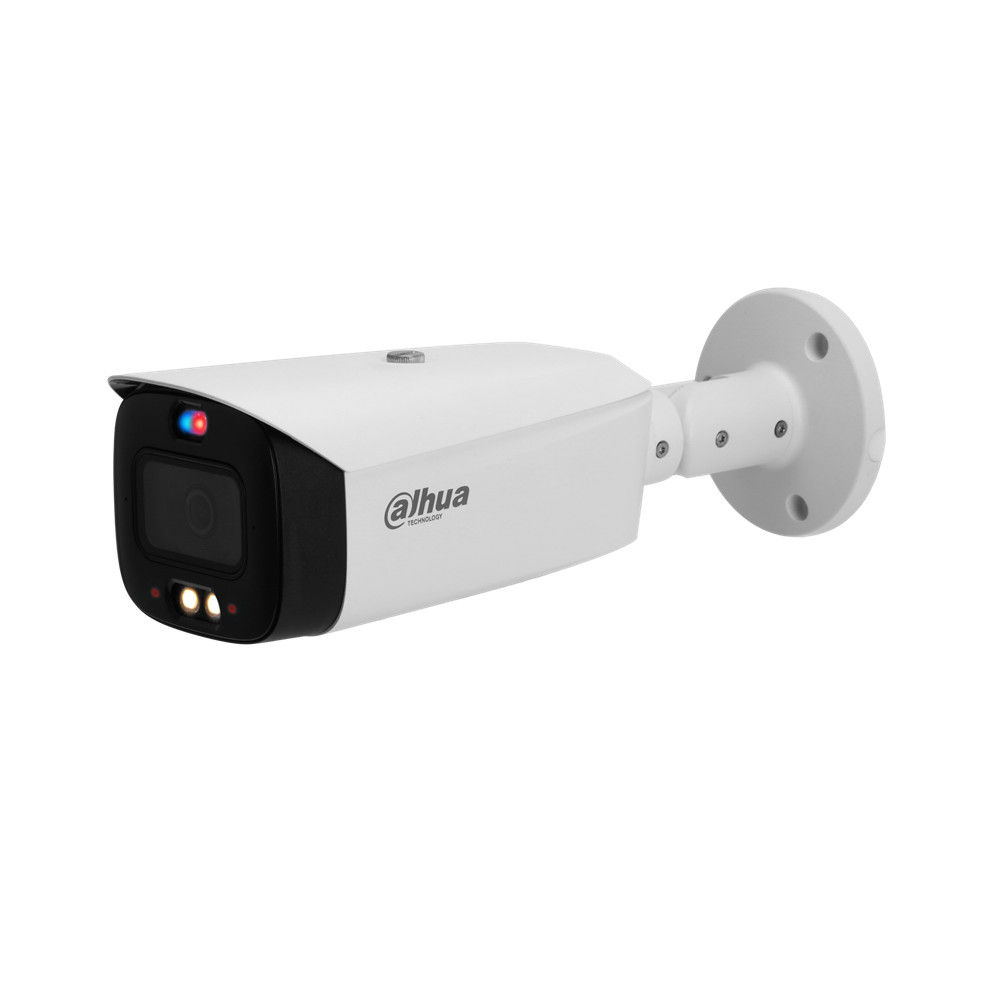

IPC-HFW3849T1-AS-PV

8MP Smart Dual Light Active Deterrence Fixed-focal Bullet WizSense Network Camera

* The parameters and datasheets below can only be applied to 3849-PV-S5 series.

> 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 8 MP (3840 ×2160)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.

> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)

> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.

> 12 VDC/PoE power supply.

> IP67 protection.

> Sound and light alarm (red and blue lights).

> SMD 4.0.

> Supports AI SSA and one-tap arming and disarming.

> SMD area can be set in warm light areas that support triggering alarms.
