SPECIFICATIONS

Brand Name: BRZHIFI

Certification: CE

Channels: 2 (2.0)

High-concerned chemical: None

Maximum Power Per Channel: Above 200W

Model Number: AV9800

Origin: Mainland China

Package: Yes

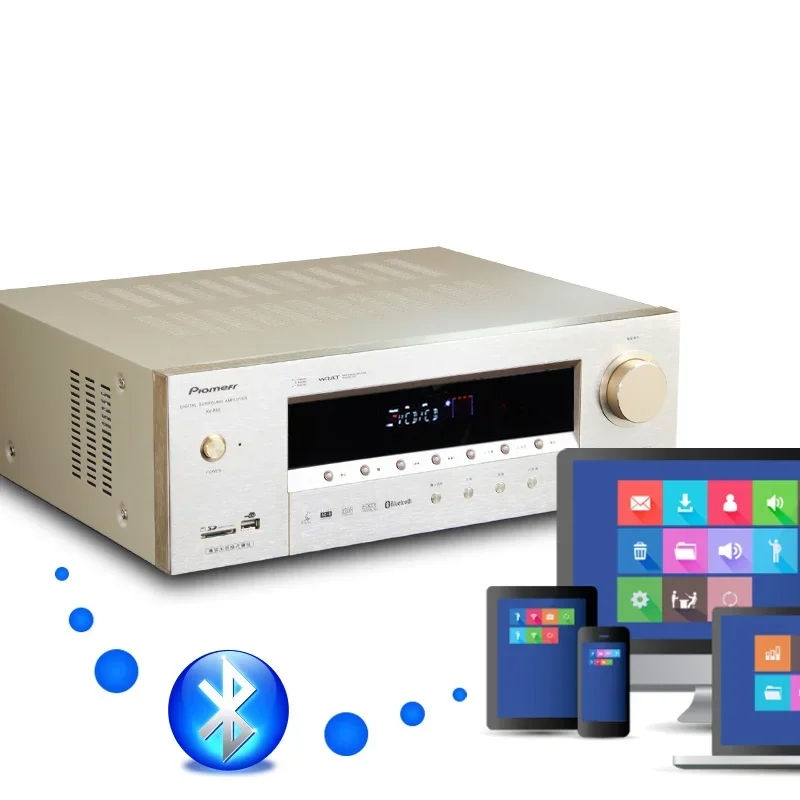

5.1 Channel Home Theater High Power Supports Fiber Coax TV Dual Microphone Bluetooth 5.0 HDMI 4K USB Karaoke Audio Amplifier

Product introduction:
1: This product can be compatible with all kinds of famous mobile phones, laptops, desktops, tablets, televisions, set-top boxes, MP3, and U disks.
2: With a remote multi-function remote control, it can easily convert audio and video.
3: Built in Bluetooth 5.0 module, which can connect mobile phone and computer.
4: Support optical fiber, coaxial input and active subwoofer output.
5: Support U disk lossless decoding, support AP3, FLAC, MP3, WMA, WAV (two channels)
6: Support HDMI-4K decoding, fast transmission speed, and highly restore sound.
7: HDMI output interface supports TV ARC audio return. You need to set this function for TV and select ARC audio support.
8: It is equipped with dual microphone interfaces to support simultaneous karaoke by multiple people.
9: The ring buffalo transformer is adopted, with strong power.

Parameters:
Output power:
Front channel: 100w+100w
Surround channel: 60w+60w
Middle channel: 60w
Bass channel: 100w
Music power: 1200w
Harmonic distortion: 0.5% 1kHz 5w
SNR:85dB
Resolution: 45dB
Input sensitivity: 500mv
Frequency response:
Front channel: 10Hz-40kHz ( 2dB)
Surround channel: 10Hz-40kHz ( 2dB)
Middle channel: 10Hz-40kHz ( 2dB)
Subwoofer channel: 10Hz-200Hz ( 2dB)
Treble adjustment: front channel 14dB (10kHz)
Bass adjustment: front channel 14dB (100Hz)
HDMI HD:
Support receiving and sending of version 1.4
Support HDMI dark color and XVYCC
Support ARC TV signal return function

Supports simultaneous output of 4K audio and video to TV

Supports audio format: PCM, sampling rate up to 24bit/192kHz

Support video formats:

4k 2k SMPTE 24Hz (4096*2160)

4k 2k 24Hz(3840*2160)

4k 2k 30Hz( 3840*2160)

1080p 60Hz(1920*1080)

USB/SD MMC car player: supports MP3, WMA formats, lossless audio APE, FLACLWAV (two channel) formats

Bluetooth: 5.0

Size: 430 * 349 * 159mm

Weight: 6.42kg

1: Fiber optic input

2: Coaxial input

3: HDMI input

4: High definition output

5: Audio input

6: AC-3 audio input

7: 5.1 Audio Input

8: Right surround sound
